Drawing Gator is an electromechanical system that transforms any digital image (e.g png, jpg, bmp, jpeg) into a physical drawing on a vertical surface.

Below are some images from the project and the testing conducted while developing it.

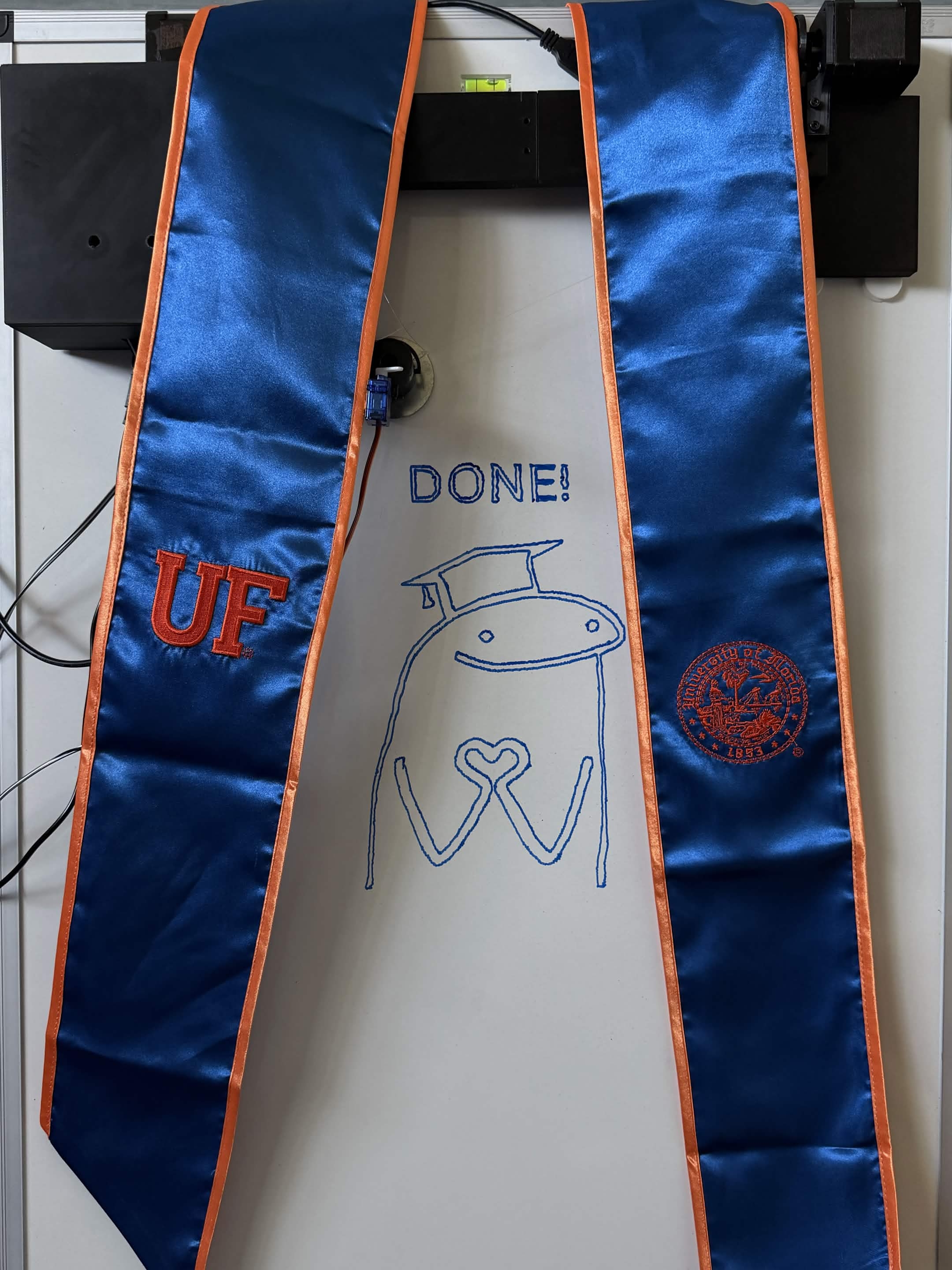

Fully working project - Presented in front of school

---

• I worked on the image processing pipeline converting every image into SVG using OpenCV, potrace and mkbitmap as my source.
• Each image was processed in grayscale and colors and each line was extracted to later be displayed both as an image and as an animation.

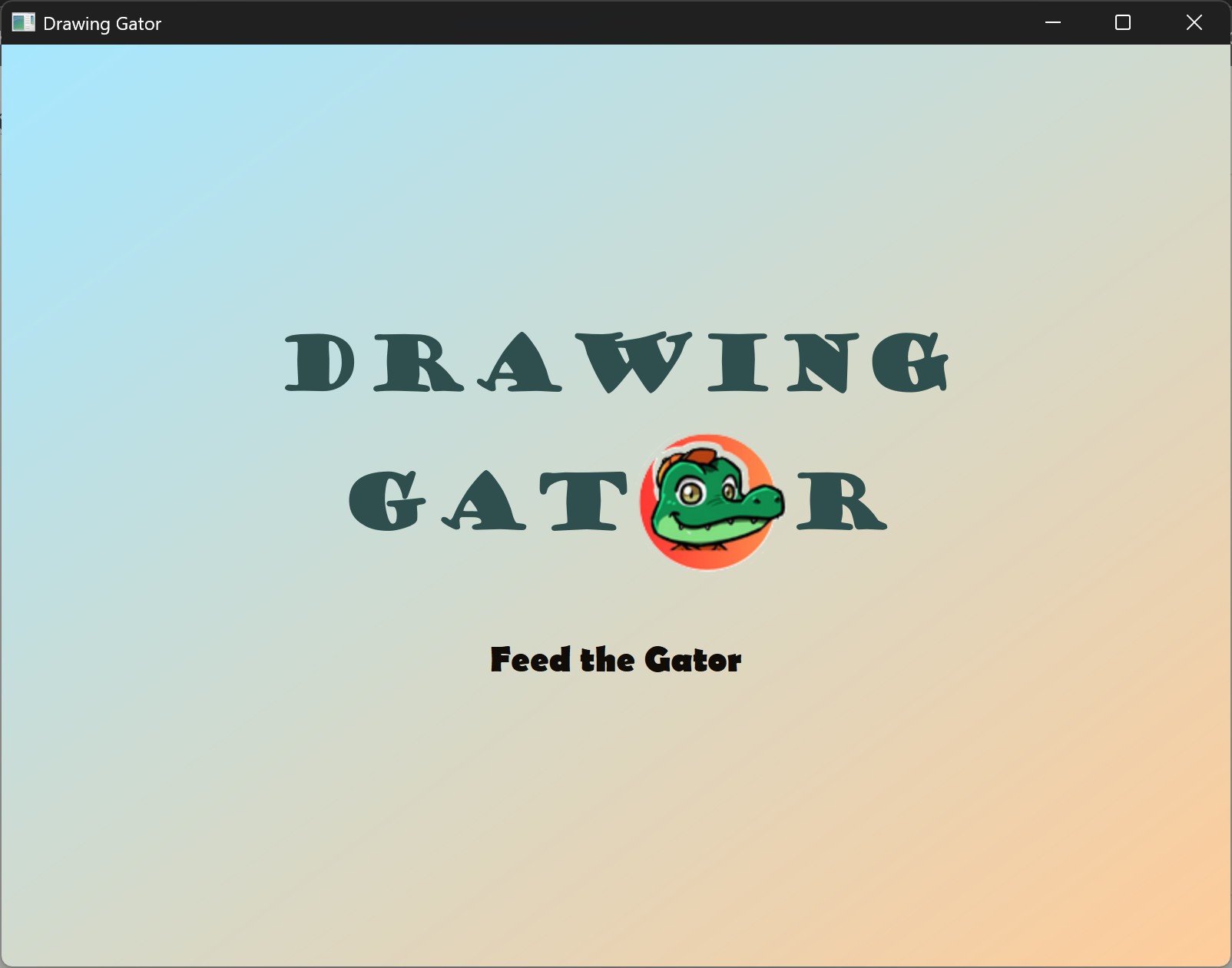

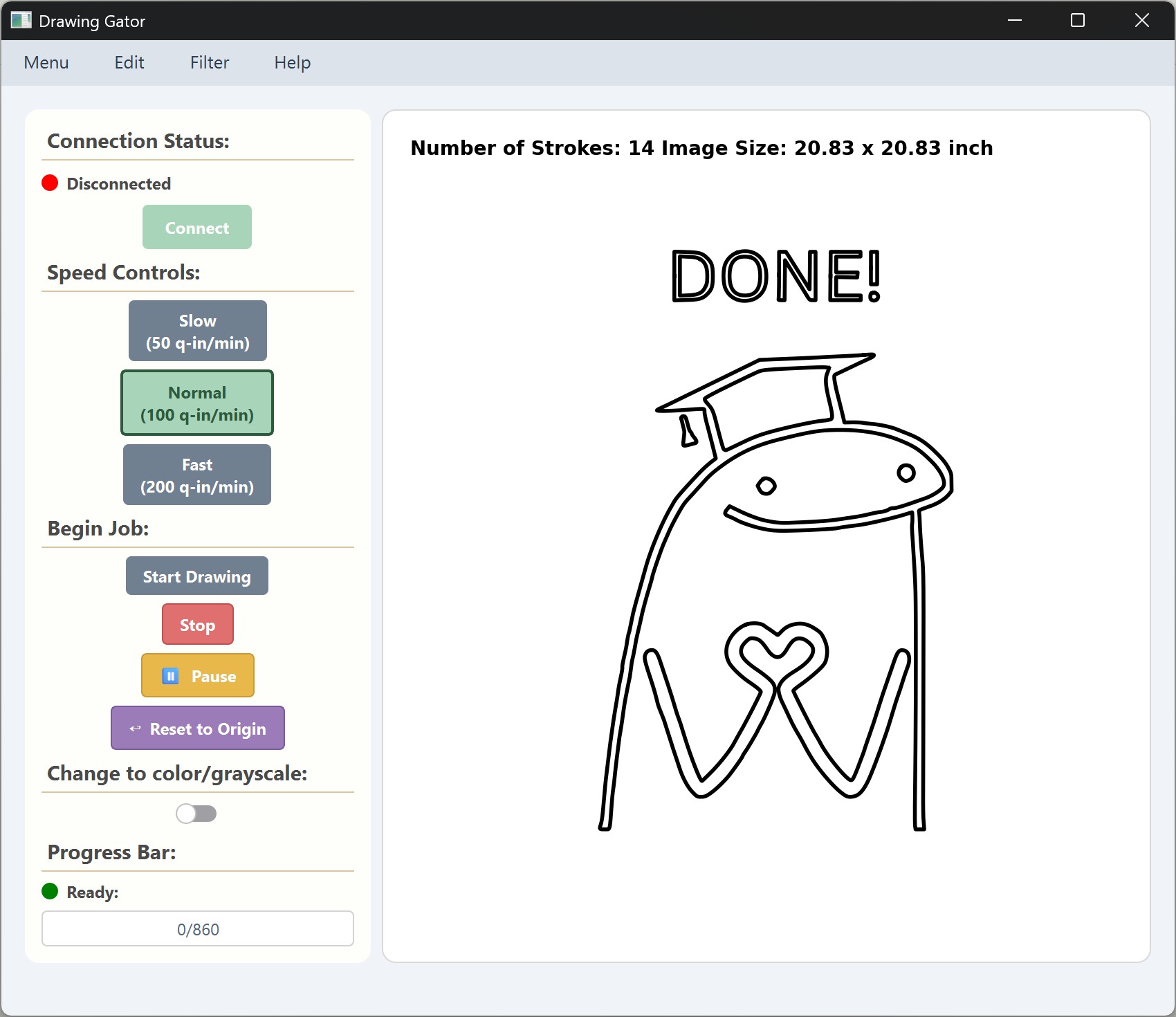

• The UI was designed and implemented in PyQt6 and made for desktop use.

---

---
